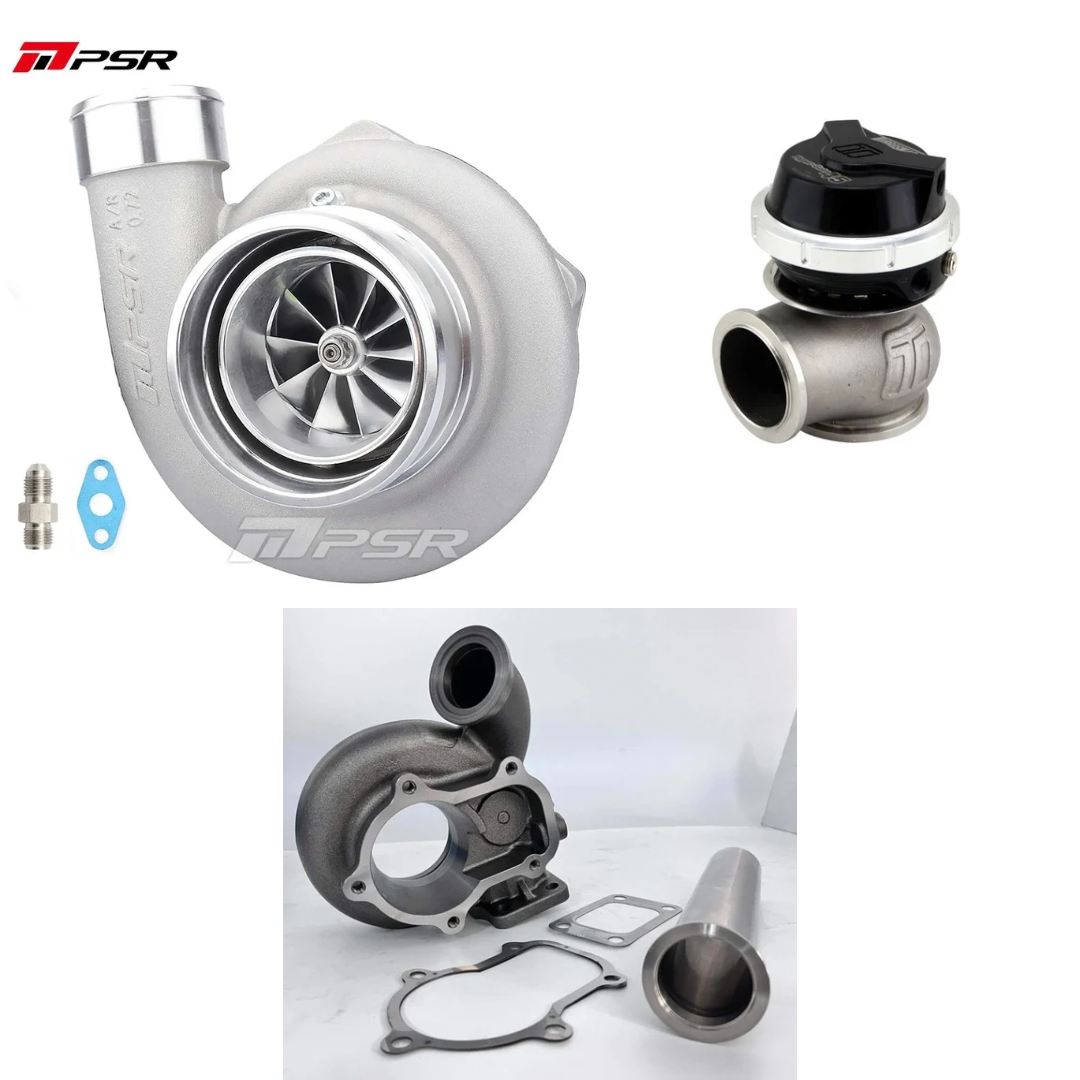

Pulsar Turbo PSR 3584 Gen 3 Turbo + FG External Gate Rear Housing + Turbosmart 45mm Wastegate Combo

 Pulsar Turbo PSR 3584 Gen 3 Turbo + FG External Gate Rear Housing + Turbosmart 45mm Wastegate Combo

Pulsar Turbo PSR 3584 Gen 3 Turbo

PSR FG External Gate Rear Housing

Turbosmart 45mm 14psi Wastegate (Black)

• Dual Ceramic Ball Bearing System
• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel with High Horsepower
• Cover Integrated with the Speed Sensor Port
• Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
• Stronger Turbine Wheel for High flow

• • Compressor Wheel: 67*84mm
  • Turbine Wheel: 74*66mm
  • Compressor Inlet: 4.0” Hose
  • Compressor Outlet: 2.5” Hose
  • Turbine Inlet: T3, T4, or 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band (3.55″OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5
  • We highly recommended running water cooling for better durability



• Based off our popular GTX3584RS series turbo, This is very similar but with the larger 66mm rear wheel.

• PSR3584 GEN3 TURBO comes with stronger turbine wheel for high flow.
